Silicon carbide ceramic bars

Silicon carbide ceramic bars

*Some content and parameters are for reference only. Our company can adjust ceramic performance and customize processing according to customer needs.

Design Features

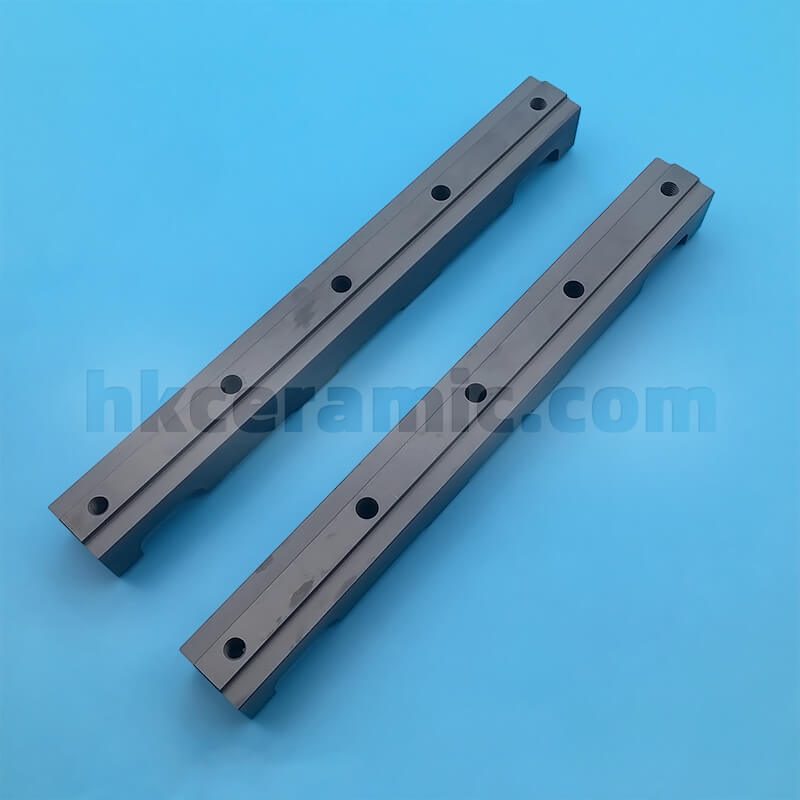

Silicon carbide ceramic clamp bars (also known as porous fixed support clamps) are high-performance industrial components, particularly suited for demanding mechanical and industrial environments.

Structural Design

Featuring multiple holes and grooves, these clamp bars can be easily installed and secured on various mechanical equipment, providing high installation flexibility and convenience.

Excellent Durability

The high hardness of silicon carbide (HRA 93, HV1 2100) and strong mechanical performance (e.g., 400 MPa flexural strength and 2600 MPa compressive strength) enable the clamp bars to withstand high pressure and friction, enhancing durability and reliability.

Superior Thermal Performance

Combined with high thermal conductivity (100 W/mK) and low thermal expansion coefficient (4 x 10^-6 K^-1), ensuring stability under extreme temperatures and reducing the impact of thermal stress.

Chemical and Thermal Stability

The chemical inertness and high-temperature stability of silicon carbide material (usable in environments up to 1600°C) make it excel in chemical corrosion or high-temperature environments.

Application Areas

Mechanical Seals and Supports

Used in high-speed, high-pressure mechanical systems such as pumps and compressors for sealing and supporting components, providing necessary support and fixation.

Abrasive Processing Equipment

Utilized as wear-resistant components in grinding and polishing equipment for processing hard materials, enhancing equipment processing capability and precision.

High-Temperature Industrial Equipment

Ideal for industrial applications requiring high temperature resistance and thermal shock resistance, such as components in heat treatment furnaces and thermal exchange systems.

Chemical and Pharmaceutical Equipment

Critical components used in chemical processing and pharmaceutical production for their corrosion resistance and resistance to chemical reactions.

The unique design and excellent physical properties of silicon carbide clamp bars make them highly valuable in modern industries, particularly suitable for use in demanding environments. These clamp bars not only improve operational efficiency and reliability of equipment but also significantly extend maintenance cycles and service life, making them an ideal choice for high-precision and high-strength applications.

In the field of custom precision ceramic processing, our company specializes in producing various high-performance ceramic components, including zirconia ceramics, silicon nitride ceramics, aluminum nitride ceramics, and more. These ceramic components possess outstanding thermal stability, electrical insulation, high-temperature stability, and wear resistance, widely used in aerospace, electronics, machinery, defense, automotive, and other key industries. Our products provide critical support and assurance to customers, helping them enhance production efficiency and optimize product performance.
