Silicon nitride ceramic fittings

Silicon nitride ceramic fittings, also known as high-temperature resistant insulation ceramic protection tubes, showcase several critical design features and material advantages that make them perform exceptionally well under extreme conditions:

Structural Design

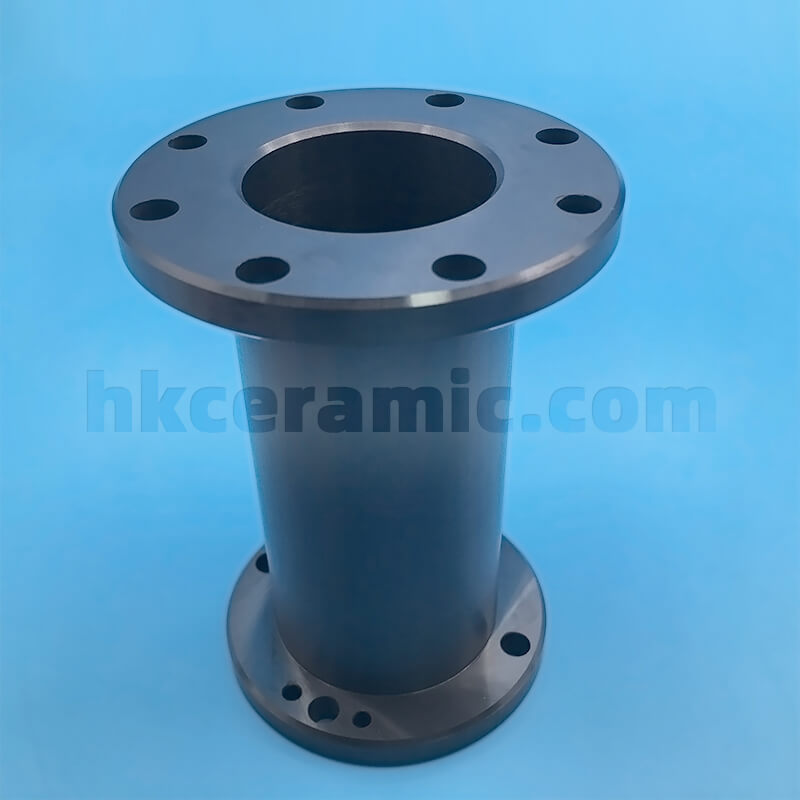

These fittings include two flanges with multiple fixed holes, facilitating the installation of the fittings into larger piping systems. The multi-point fixation design ensures stability and safety under high-pressure or high-temperature operating conditions.

High-Performance Materials

The silicon nitride ceramic used in these fittings offers outstanding heat resistance, wear resistance, and resistance to chemical corrosion, making it suitable for manufacturing industrial fittings for extreme conditions. Silicon nitride's low thermal expansion coefficient (3.1 × 10^-6/℃) and high thermal conductivity (15-20 W/(m·K)) help maintain the structural integrity of the fittings during frequent thermal cycles.

Wear Resistance and Impact Resistance

With a Vickers hardness up to 1500 HV and compressive strength up to 2500 MPa, silicon nitride provides excellent wear resistance and impact resistance, enabling the fittings to withstand wear and mechanical stress encountered during operation.

Silicon nitride ceramic fittings excel in multiple industrial applications:

Chemical Processing

In the chemical industry, these fittings are used to transport highly corrosive chemicals. Their chemical resistance and high-temperature performance ensure reliability and safety when handling acids, alkalis, and other corrosive substances.

Petroleum Refining

During the refining of petroleum and natural gas, these fittings are employed in high-temperature and high-pressure environments to provide necessary insulation and protection, preventing material degradation and system failures.

Advanced Materials Manufacturing

In high-temperature materials processing and advanced manufacturing industries, silicon nitride fittings protect critical components, such as in high-temperature furnaces and reactors, ensuring process stability and efficiency.

Silicon nitride ceramic fittings offer reliable solutions in high-temperature, high-pressure, and chemically corrosive environments, thanks to their excellent design and high-performance material properties. The optimized design and manufacturing of these fittings ensure they maintain performance and stability in the most demanding industrial applications, thereby enhancing system safety and efficiency. With their durability and functionality, silicon nitride ceramic fittings have become essential components in chemical processing, petroleum refining, and advanced materials manufacturing industries.

In the field of custom precision ceramic processing, our company specializes in producing various high-performance ceramic components, including zirconia ceramics, silicon nitride, aluminum nitride, and more. These ceramic components offer exceptional thermal stability, electrical insulation, high-temperature stability, and wear resistance, widely applied in critical fields such as aerospace, electronics, machinery, defense, and automotive. Our products provide crucial support and assurance to customers with their outstanding performance and reliability, contributing to enhanced production efficiency and optimized product performance.
